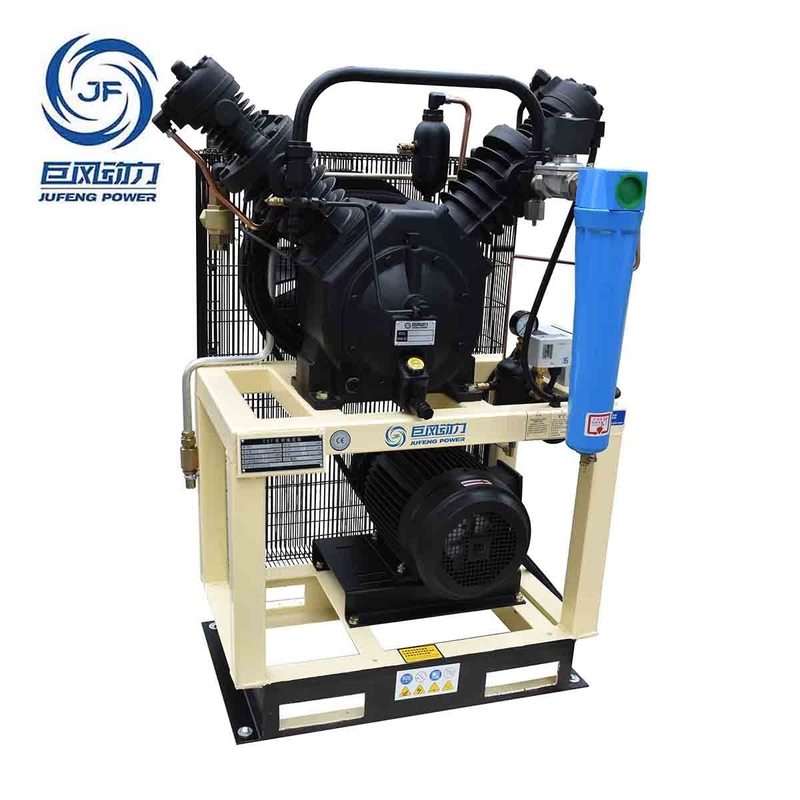

Name: Booster Compressor Use To Increase The Pressure Of The Screw Air Compressor
Brand: Jiangsu Jufeng Machinery Manufacturing Co., LTD
SKU: BC-4.0/10-40
Availability: InStock

Zu Hause > produits > Direkt angetriebener Schraubenkompressor >

Booster Compressor Use To Increase The Pressure Of The Screw Air Compressor

Place of Origin:

China

Markenname:

Jufeng

Zertifizierung:

CE, ISO, ETC

Model Number:

BC-4.0/10-40

Dokument:

Jufeng Medium-High Pressure...or.pdf

Kontakt mit uns

Anfrage A Zitat

Booster Compressor Use To Increase The Pressure Of The Screw Air Compressor

Einzelheiten zum Produkt

Power Source:

Electric

Vlotage:

380V/50Hz Or you need

Warranty:

1 year

Working Pressure:

30-60 bar

Note:

It needs to be used together with the screw air compressor

Zahlungs- und Versandbedingungen

Minimum Order Quantity

1 unit

Preis

Packaging Details

Export wooden box packaging

Delivery Time

7-15 work days

Payment Terms

L/C,D/P,D/A,T/T,Western Union,MoneyGram

Supply Ability

1000 units per month

Verwandte Produkte

Booster Compressor Use To Increase The Pressure Of The Screw Air Compressor

Beste Preis erhalten

OEM 37kw 50 PS direkt angetriebener Schraubluftkompressor Einstufige Festgeschwindigkeitsart

Beste Preis erhalten

15 kW Einstufen-Direktantriebsluftkompressor für die industrielle Lackierung 20 PS Festgeschwindigkeit

Beste Preis erhalten

JF-15A 11kw Leistungsfrequenz Festgeschwindigkeit Schraubtyp Luftkompressor mit Elektrizität 380V/3pH/50Hz

Beste Preis erhalten

Kontakt mit uns

86-21-56420500

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Jufeng booster compressor: Simple, economical & high-performance. Upgrade from 0.7-1.0 MPa to 6.0 MPa—no need for expensive high-pressure units!

Jufeng Booster Compressor – Cost-Effective High-Pressure Solution

Meta Description

Jufeng’s booster compressor increases pressure from 0.7-1.0 MPa to 6.0 MPa—stable, energy-saving & reliable. No need to buy a new high-pressure unit!

Booster Compressor Use To Increase The Pressure Of The Screw Air Compressor 0

Product Highlights

✔ Simple & Economical – Avoid purchasing costly high-pressure compressors; boost existing systems up to 6.0 MPa.
✔ Stable Performance – Reliable pressure amplification for industrial applications.
✔ Energy Efficient – Lower operational costs vs. traditional high-pressure models.
✔ Wide Compatibility – Works with standard air compressors (0.7-1.0 MPa input).

Jufeng’s booster compressor provides a simple, convenient, and economical way to achieve high-pressure air (up to 6.0 MPa) without replacing your existing system. Ideal for industries requiring stable and reliable pressure amplification, this solution eliminates the need for expensive high-pressure compressors—saving upfront and operational costs. Whether for manufacturing, PET blowing, or CNG applications, Jufeng’s design ensures high performance with minimal maintenance.

Product parameters

Model	Intake pressure Mpa	Working pressure Mpa	Low pressure air intake m³/min	High pressure air outlet m³/min	Motor power KW	Speed r.p.m	Size mm (LxWxH)mm	Weight kg
BC-0.72/7-35	0.7	3.5	0.85	0.72	5.5	670	935x900x1325	330
BC-1.65/10-30	1.0	3.0	2.0	1.65	7.5	670	935x900x1325	350
BC-2.4/10-35	1.0	3.5	2.8	2.4	9	950	935x900x1325	380
BC-3.0/10--40	1.0	4.0	3.5	3	11	800	935x940x1325	430
BC-4.0/10-40	1.0	4.0	4.6	4	15	1050	1330x735x1600	460
BC-5.0/10-40	1.0	4.0	6	5	18.5	585	2070x1000x1160	840
BC-6.0/10-40	1.0	4.0	6.9	6	22	630	2070x1000x1160	845
BC-8.0/10-40	1.0	4.0	8.5	8	30	800	2070x1000x1160	845
BC-10/10-40	1.0	4.0	11.6	10	30	800	2070x1020x1200	895
BC-5.0/60-10	1.0	6.0	6	5	30	735	2130x1000x1200	905
2-BC-20/10-40	1.0	4.0	23	20	2x30	800	2200x1130x2420	1840
2-BC-10/10-60	1.0	6.0	11.6	10	2x30	735	2200x1130x2420	1865
